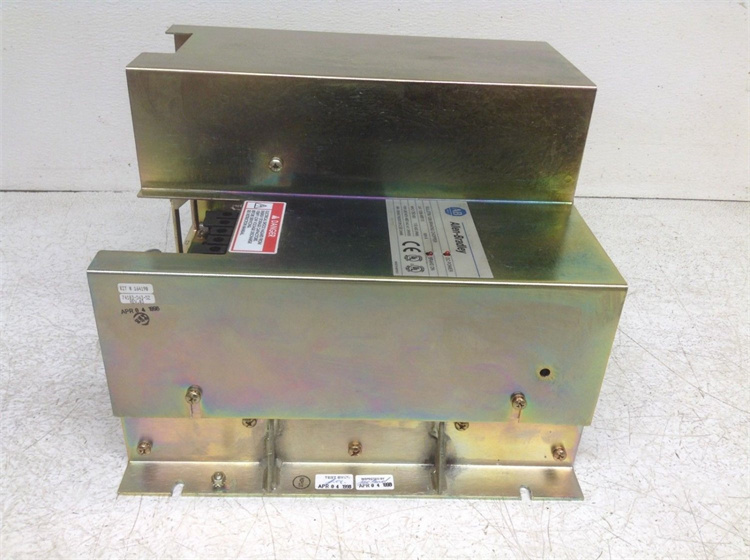

A-B罗克韦尔 1336-WB110 动态制动斩波器模块是一款由Allen-Bradley品牌生产的高效、可靠的电子模块，广泛应用于各种电机控制系统中，用于实现电机的快速制动和精确控制。该模块具有以下主要特点：

电压和电流范围：工作电压范围为380-480V AC，工作电流为110A。

绝缘栅双极晶体管（IGBT）斩波晶体管电压控制：这种技术可以有效调节直流母线电压，特别是在再生期间。

制动电阻：该模块带有2.5欧姆的制动电阻，用于增加制动扭矩，从而实现更有效的能量转换。

温度和湿度范围：工作温度范围为-10至40ºC（14至104ºF），在5至95%的非冷凝和非腐蚀性湿度范围内不会降额。

并联设置：当工作电流超过模块额定电流时，可以与另一个Allen-Bradley制动斩波器模块并联设置在主从动配置中。

应用领域：该模块通常被用于工业自动化和控制系统中，特别是在驱动马达、直流伺服电机或其他电动设备时提供必要的电源和控制功能。

技术细节：采用脉宽调制（PWM）技术，可实现平滑、高效的制动。

A-B罗克韦尔 1336-WB110 动态制动斩波器模块不仅具备强大的功能和灵活性，还通过先进的技术确保了其在各种复杂环境下的可靠性和高效性。

A-B Rockwell 1336-WB110 Dynamic Brake Chopper Module is an efficient and reliable electronic module produced by Allen Bradley brand, widely used in various motor control systems to achieve fast braking and precise control of motors. This module has the following main features:

Voltage and current range: The working voltage range is 380-480V AC, and the working current is 110A.

Insulated gate bipolar transistor (IGBT) chopper transistor voltage control: This technology can effectively regulate the DC bus voltage, especially during regeneration.

Braking resistor: This module is equipped with a 2.5 ohm braking resistor to increase braking torque and achieve more efficient energy conversion.

Temperature and humidity range: The operating temperature range is -10 to 40 º C (14 to 104 º F), and there will be no derating in the non condensing and non corrosive humidity range of 5 to 95%.

Parallel setting: When the operating current exceeds the rated current of the module, it can be set in parallel with another Allen Bradley brake chopper module in the master slave configuration.

Application field: This module is commonly used in industrial automation and control systems, especially to provide necessary power and control functions when driving motors, DC servo motors, or other electric equipment.

Technical details: Using pulse width modulation (PWM) technology, smooth and efficient braking can be achieved.

The A-B Rockwell 1336-WB110 dynamic brake chopper module not only has powerful functionality and flexibility, but also ensures its reliability and efficiency in various complex environments through advanced technology.
