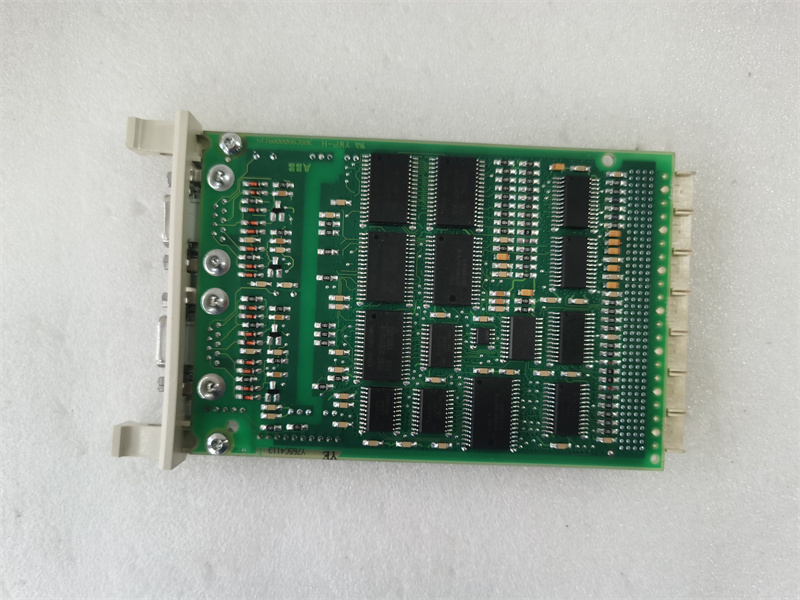

ABB CI541V1 (S800 通讯卡) 模拟量输入输出模块

一、产品概述

ABB CI541V1 是S800 I/O系统中的一款通信接口模块，专为工业自动化设计，支持模拟量信号的输入与输出，实现设备间的数据传输和远程控制。该模块广泛应用于电力、化工、石油天然气、制造业等领域，适用于分布式控制系统，支持多种通信协议（如Modbus、Profibus等）。

二、核心功能

模拟量信号处理

支持4-20mA电流、0-10V电压等标准模拟量信号。

可配置为热电阻（如Pt100）或热电偶（如K型）测量模式，适用于温度监测。

提供差分输入选项，减少干扰，提升测量精度。

通信协议支持

兼容以太网、RS-232/RS-485串行通信及主流工业协议（Modbus、Profibus、DeviceNet等）。

支持冗余通信配置，增强系统可靠性。

模块化与扩展性

属于S800 I/O系统，支持横向扩展安装，单站最多集成24个I/O模块。

通过光纤ModuleBus扩展，覆盖远程分布式控制需求。

三、技术规格

参数 详情

工作电压 24V DC（供电电源来自I/O总线）

信号类型 模拟量输入/输出：4-20mA、0-10V；数字量I/O（部分型号支持）

分辨率 12位模拟量转换精度

通信接口 支持以太网、串行接口及工业协议（需配置）

环境适应性 符合G3标准，耐受恶劣工业环境（如高温、振动）

安装方式 DIN导轨安装或墙面固定，支持模块化组合

四、应用场景

工业自动化控制

在电厂、矿场、钢厂中用于设备状态监测（如温度、压力、流量）。

与PLC、传感器等设备配合，实现闭环控制。

环境监测

部署于水处理、环保领域，用于采集水质、气体浓度等模拟量数据。

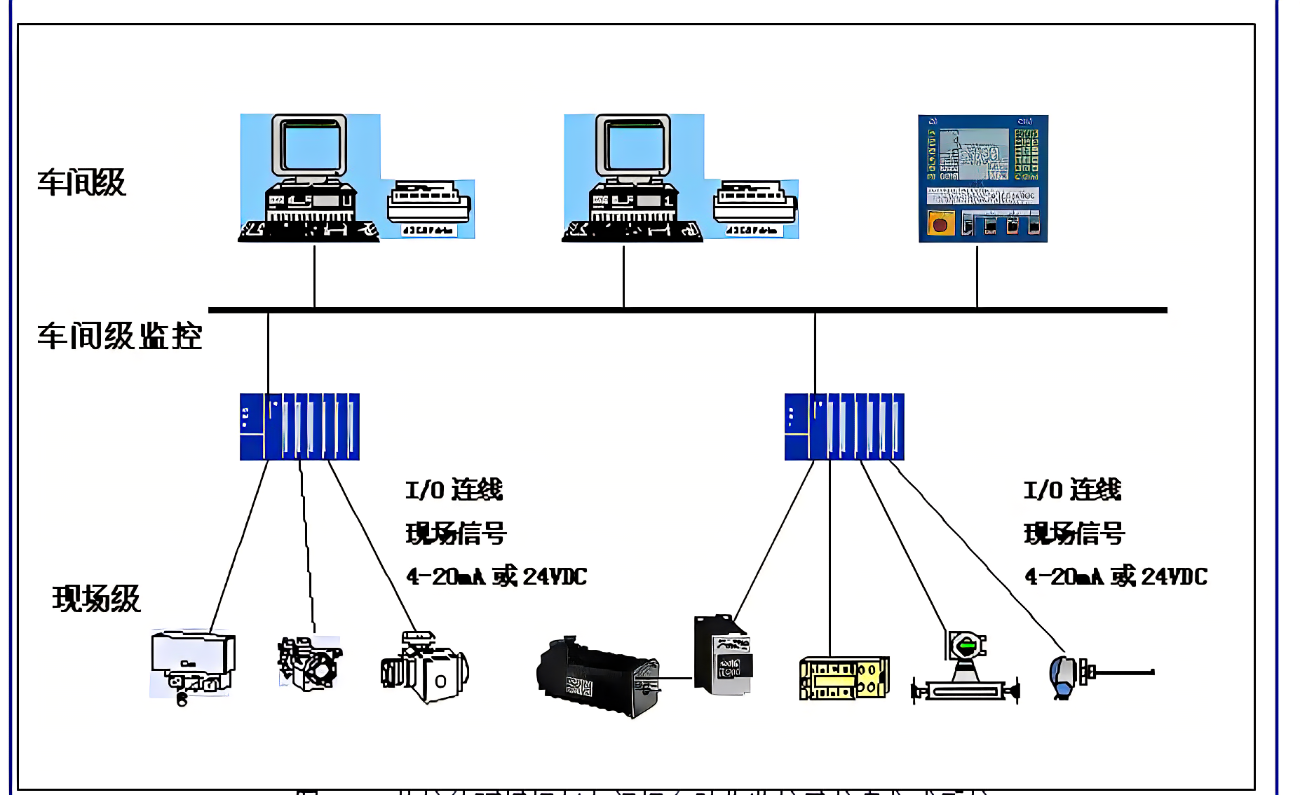

分布式控制系统

通过光纤扩展，覆盖大型工厂的多区域控制需求，降低布线成本。

五、安装与配置指南

电气连接

使用屏蔽电缆并接地，避免信号干扰。

未使用的模拟量通道需设为“未使用”状态，防止错误诊断。

配置工具

通过ABB提供的配置软件（如Control Builder）设置通信协议、I/O通道参数。

支持热电阻/热电偶的接线配置（如2线制、3线制）。

冗余设计

关键应用可配置冗余电源和I/O通道，提升系统容错能力。

ABB CI541V1 (S800 communication card) analog input/output module

1、 Product Overview

ABB CI541V1 is a communication interface module in the S800 I/O system, designed specifically for industrial automation. It supports the input and output of analog signals, enabling data transmission and remote control between devices. This module is widely used in fields such as power, chemical, oil and gas, manufacturing, etc. It is suitable for distributed control systems and supports multiple communication protocols (such as Modbus, Profibus, etc.).

2、 Core functions

Analog signal processing

Supports standard analog signals such as 4-20mA current and 0-10V voltage.

Can be configured as a thermistor (such as Pt100) or thermocouple (such as K-type) measurement mode, suitable for temperature monitoring.

Provide differential input options to reduce interference and improve measurement accuracy.

Communication protocol support

Compatible with Ethernet, RS-232/RS-485 serial communication, and mainstream industrial protocols such as Modbus, Profibus, DeviceNet, etc.

Support redundant communication configuration to enhance system reliability.

Modularity and Scalability

Belonging to the S800 I/O system, it supports horizontal expansion installation and can integrate up to 24 I/O modules in a single station.

Expand through fiber optic Module Bus to cover remote distributed control requirements.

3、 Technical specifications

Parameter details

Working voltage 24V DC (power supply from I/O bus)

Signal type analog input/output: 4-20mA, 0-10V; Digital I/O (supported by some models)

Resolution 12 bit analog conversion accuracy

Communication interface supports Ethernet, serial interface, and industrial protocol (configuration required)

Environmental adaptability meets G3 standards and can withstand harsh industrial environments such as high temperatures and vibrations

Installation method: DIN rail installation or wall fixing, supporting modular combination

4、 Application scenarios

industrial automation control

Used for equipment condition monitoring (such as temperature, pressure, flow) in power plants, mines, and steel mills.

Cooperate with PLC, sensors and other equipment to achieve closed-loop control.

environmental monitoring

Deploy in the fields of water treatment and environmental protection, used to collect analog data such as water quality and gas concentration.

DCS

By expanding through fiber optics, we can cover the multi area control needs of large factories and reduce wiring costs.

5、 Installation and Configuration Guide

Electrical connection

Use shielded cables and ground them to avoid signal interference.

Unused analog channels should be set to "unused" status to prevent incorrect diagnosis.

Configuration tool

Set communication protocols and I/O channel parameters through configuration software provided by ABB, such as Control Builder.

Support wiring configuration for thermistor/thermocouple (such as 2-wire system, 3-wire system).

Redundant design

Key applications can be configured with redundant power supplies and I/O channels to enhance system fault tolerance.
