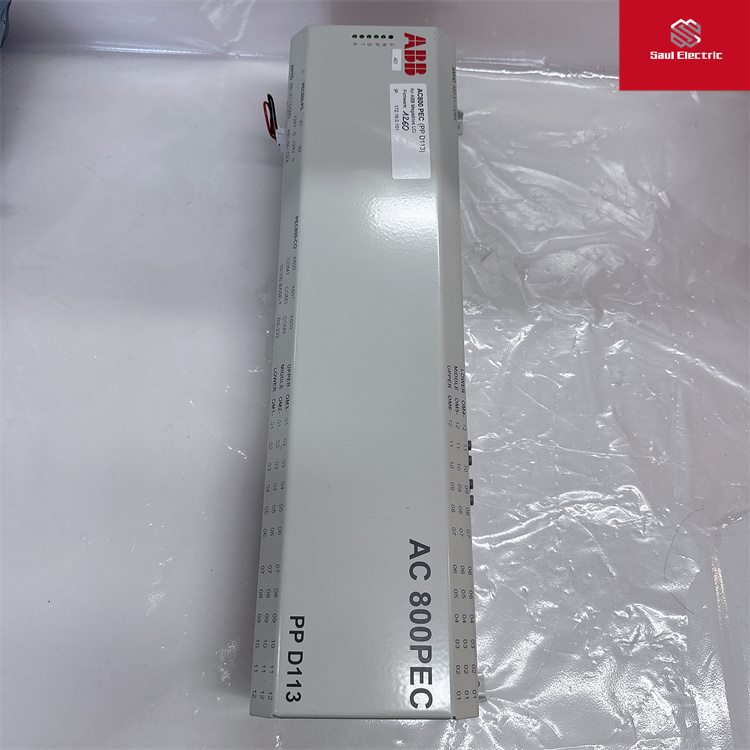

ABB PPD113是一款专业的励磁控制器，用于高压逆变器备件，并且是PPD系列励磁系统的大脑。以下是关于PPD113的一些关键信息：

型号与版本：PPD113的零件号为3BHE023784R2630，存在B01-10-150000版本，适用于AC 800PEC系统 。

功能特点：

具备励磁控制功能，能够实现对励磁电流的精确控制，满足发电机或电动机的励磁需求。

设有多个输入输出接口，可以接收其他设备的信号并输出控制信号，实现联动和协调控制。

采用高品质电子元件和设计，确保了高稳定性和可靠性。

友好的人机界面，便于系统配置、故障诊断和软件升级，降低维护成本 。

优势：

提供高精度控制，提高发电机运行效率和稳定性。

兼容性强，适应不同励磁系统和控制需求。

采用节能技术，降低能耗和排放，符合环保要求。

性价比高，满足不同用户的需求和预算 。

技术规格：

PPD113模块具有32个通道，支持模拟量输入/输出和数字量输入/输出。

测量精度达到0.1%含氟量程，隔离电压为2500V，重量大约0.5千克 。

应用领域：

PPD113广泛应用于工业自动化、电力系统、石油化工、冶金、水处理、食品加工和纺织等领域 。

控制器组成：

由主处理器、电源模块和输入/输出模块组成，负责控制励磁装置的所有功能，包括电流控制、保护和通信 。

保护功能：

具有过流保护、过压保护、欠压保护和短路保护等完善的保护功能 。

通信能力：

支持多种通信协议，如Modbus、Profibus和CANopen，实现远程监控和控制 。

性能参数：

电流范围0-1500A，电压范围0-100V，频率范围0-60Hz 。

PPD113励磁控制器是ABB在工业自动化和电力技术领域深厚实力的体现，为各种直流电动机系统提供了一个高效、可靠和安全的解决方案。

ABB PPD113 is a professional excitation controller for high voltage inverter spare parts and is the brains of the PPD family of excitation systems. Here are some key facts about the PPD113:

Model and version: PPD113 has part number 3BHE023784R2630, available in B01-10-150000 versions for AC800PEC systems.

Functional features:

With the excitation control function, it can realize the precise control of the excitation current, and meet the excitation needs of the generator or motor.

With multiple input and output interfaces, it can receive signals from other devices and output control signals to achieve linkage and coordinated control.

High quality electronic components and design ensure high stability and reliability.

User-friendly human-machine interface facilitates system configuration, fault diagnosis, and software upgrade, reducing maintenance costs.

Advantages:

Provides high precision control to improve generator operating efficiency and stability.

Strong compatibility, adapt to different excitation system and control needs.

Adopt energy-saving technology, reduce energy consumption and emissions, and meet environmental requirements.

Cost-effective to meet the needs and budgets of different users.

Technical specifications:

The PPD113 module has 32 channels and supports analog input/output and digital input/output.

The measurement accuracy reaches 0.1% fluoride range, the isolation voltage is 2500V, and the weight is about 0.5 kg.

Application field:

PPD113 is widely used in industrial automation, power systems, petrochemical, metallurgy, water treatment, food processing and textiles.

Controller composition:

It consists of the main processor, power module, and input/output module, and is responsible for controlling all functions of the excitation device, including current control, protection, and communication.

Protection function:

It has perfect protection functions such as over current protection, over voltage protection, under voltage protection and short circuit protection.

Communication capability:

Multiple communication protocols such as Modbus, Profibus and CANopen are supported for remote monitoring and control.

Performance parameters:

Current range 0-1500A, voltage range 0-100V, frequency range 0-60Hz.

The PPD113 excitation controller is the embodiment of ABB's deep strength in industrial automation and power technology, providing an efficient, reliable and safe solution for a wide range of DC motor systems.
