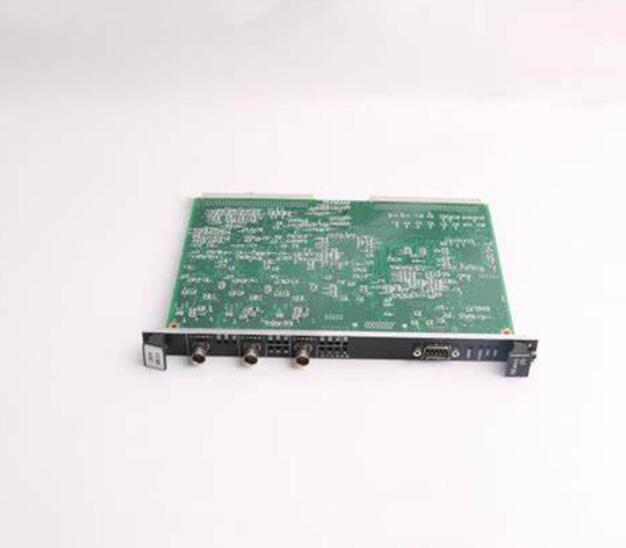

GE Mark VI控制系统 IS215VCMIH2C VME通信接口卡模块

GE Mark VI控制系统中的IS215VCMIH2C VME通信接口卡模块是一个关键的硬件组件，它在整个系统的运行中起着至关重要的作用。以下是对该模块的详细解析：

一、概述

IS215VCMIH2C是GE Mark VI涡轮机控制系统中的VME通信接口卡，它负责协调数据和命令在系统内的交换，确保各个组件之间的顺畅通信。该模块不仅连接I/O板和控制器，还作为系统控制网络（IONet）的通信接口，使得整个系统能够高效地协同工作。

二、主要功能

1. 通信桥梁：IS215VCMIH2C作为I/O板和控制器之间的桥梁，确保数据和控制信号能够在不同组件之间准确传输。
2. IONet接口：它还作为IONet或系统控制网络的通信接口，使得系统能够与其他网络和设备进行交互。
3. 端口配置：该模块内置了四个端口连接，包括一个RS-232C串行端口、一个D型插头连接器和三个IONet 10Base2以太网端口。这些端口提供了丰富的连接选项，以满足不同的通信需求。
4. LED指示灯：模块上设有多个LED指示灯，用于显示不同的状态信息，如Status、Fail、Run以及针对IONet端口的TX/RX/CD指示灯。这些指示灯有助于用户快速诊断和解决潜在问题。

三、技术规格

• 制造商：通用电气公司（GE）
• 核心处理器：可能包含TI 32位数字信号处理器芯片（如TMS320C32），用于处理复杂的数学计算和信号处理任务。
• 内存配置：可能配备双端口内存和SRAM/闪存等存储组件，以满足数据密集型应用的需求。
• 电路板尺寸：符合VME标准，如6U高VME电路板，宽度为0.787英寸，可无缝集成到VME机箱中。
• 高频噪声处理：通过使用电感磁珠等技术手段，减少电路板上的高频噪声干扰，提高通信质量。

四、应用场景

IS215VCMIH2C VME通信接口卡模块广泛应用于GE Mark VI控制系统中的各类涡轮机和燃气轮机控制系统中。它对于确保设备的稳定运行、提高生产效率和安全性具有重要意义。

The IS215VCMIH2C VME communication interface card module in the GE Mark VI control system is a critical hardware component that plays a vital role in the operation of the entire system. The following is a detailed analysis of the module:

1、 Overview

IS215VCMIH2C is a VME communication interface card in the GE Mark VI turbine control system, responsible for coordinating the exchange of data and commands within the system, ensuring smooth communication between various components. This module not only connects the I/O board and controller, but also serves as a communication interface for the system control network (IONet), enabling the entire system to work efficiently together.

2、 Main functions

Communication Bridge: IS215VCMIH2C serves as a bridge between the I/O board and the controller, ensuring accurate transmission of data and control signals between different components.

IONet interface: It also serves as a communication interface for IONet or system control networks, enabling the system to interact with other networks and devices.

Port configuration: This module has four built-in port connections, including an RS-232C serial port, a D-type plug connector, and three IONet 10Base2 Ethernet ports. These ports provide a variety of connection options to meet different communication needs.

LED indicator lights: The module is equipped with multiple LED indicator lights to display different status information, such as Status, Fail, Run, and TX/RX/CD indicator lights for IONet ports. These indicator lights help users quickly diagnose and resolve potential issues.

3、 Technical specifications

Manufacturer: General Electric Company (GE)

Core processor: may include TI 32-bit digital signal processor chips (such as TMS320C32) for processing complex mathematical calculations and signal processing tasks.

Memory configuration: It may be equipped with dual port memory and storage components such as SRAM/flash memory to meet the needs of data intensive applications.

Circuit board size: Complies with VME standards, such as a 6U high VME circuit board with a width of 0.787 inches, which can be seamlessly integrated into a VME chassis.

High frequency noise processing: By using techniques such as inductive magnetic beads, high-frequency noise interference on the circuit board is reduced and communication quality is improved.

4、 Application scenarios

The IS215VCMIH2C VME communication interface card module is widely used in various turbine and gas turbine control systems in the GE Mark VI control system. It is of great significance for ensuring the stable operation of equipment, improving production efficiency and safety.
