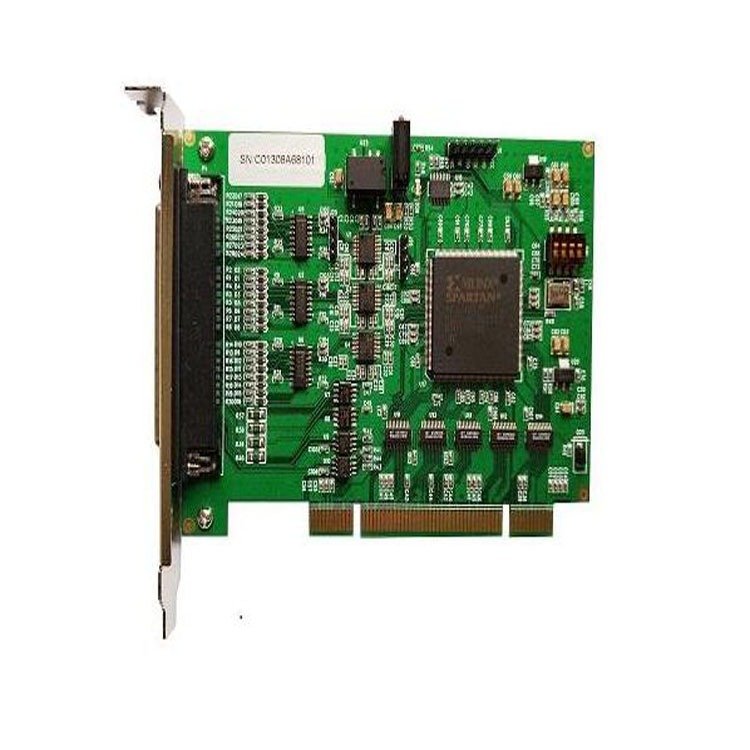

GE VMIPCI-5565高速传输反射内存卡是一款由GE Fanuc Embedded Systems提供的实时网络产品，属于VMIxxx-5565系列反射式存储器（RFM）的PCI成员。以下是关于该内存卡的详细特点和信息：

1. 主要特性：
• 高速光纤网络：支持高速、易用的光纤网络，串行速率达到2.12 Gbaud。
• 数据共享：写入一个节点内存的数据也会被自动写入网络上所有节点的内存，允许数据在多达256个节点之间共享。
• 传输距离：与多模光纤的连接最长可达300米，与单模光纤的连接最长可达10千米。
• 动态数据包大小：支持的数据包长度为4至64字节，传输速率从47.1MB/秒（4字节数据包）至174MB/秒（64字节数据包）。
• 内存配置：提供64MB或128MB的SDRAM反射内存。
2. 技术规格：
• DMA通道：拥有两个独立的DMA通道，支持高效的数据传输。
• 中断能力：网络上的任何节点都可以通过一条命令在网络上的任何其他节点或所有网络节点中产生中断。
• 错误检测：具备错误检测功能，确保数据传输的可靠性。
• 冗余传输模式：提供冗余传输模式，进一步抑制错误，提高系统的容错性。
• 处理器无开销：处理器不参与网络运行，减少了系统的处理负担。
• PCI兼容性：支持PCI 64位 66MHz传输，符合PCI修订版2.2。
3. 应用与兼容性：
• 实时数据共享：允许计算机、工作站、可编程逻辑控制器（PLC）和其他具有不同操作系统或根本没有操作系统的嵌入式控制器实时共享数据。
• 跨平台兼容性：与多种操作系统兼容，包括WindowsNT、Windows 2000、VxWorks和Linux等。
• 广泛适用性：适用于仿真与培训、工业过程控制、数据流与采集等实时应用，也满足商业、电信和军事&航空航天等领域对高可用性冗余的需求。

The GE VMIPCI-5565 High Speed Transport Reflective Memory card is a real-time networking product from GE Fanuc Embedded Systems and is a PCI member of the VMIxxx-5565 family of Reflective memory (RFM). The following are the detailed features and information about the memory card:

Main features:

High-speed Fiber networks: Support high-speed, easy-to-use fiber networks with serial rates up to 2.12 Gbaud.

Data sharing: Data written to the memory of one node is also automatically written to the memory of all nodes on the network, allowing data to be shared between up to 256 nodes.

Transmission distance: The connection with multi-mode fiber can be up to 300 meters, and the connection with single-mode fiber can be up to 10 kilometers.

Dynamic packet size: Supported packet lengths range from 4 to 64 bytes, and transfer rates range from 47.1MB/ s (4-byte packets) to 174MB/ s (64-byte packets).

Memory configuration: Provides 64MB or 128MB of SDRAM reflected memory.

Technical specifications:

DMA channels: Two independent DMA channels support efficient data transfer.

Interrupt capability: Any node on the network can generate an interrupt in any other node on the network or in all network nodes with a single command.

Error detection: Provides error detection to ensure the reliability of data transmission.

Redundant transmission mode: Provides redundant transmission mode to further suppress errors and improve the fault tolerance of the system.

Processor no overhead: The processor does not participate in network operation, reducing the processing burden of the system.

PCI Compatibility: Support for PCI 64-bit 66MHz transmission, compliant with PCI Revision 2.2.

Application and compatibility:

Real-time data sharing: Allows computers, workstations, programmable logic controllers (PLCS), and other embedded controllers with different operating systems or no operating systems at all to share data in real-time.

Cross-platform compatibility: Compatible with multiple operating systems, including WindowsNT, Windows 2000, VxWorks, and Linux.

Wide applicability: Suitable for real-time applications such as simulation and training, industrial process control, data flow and acquisition, as well as for high availability redundancy in commercial, telecommunications and military & aerospace.
