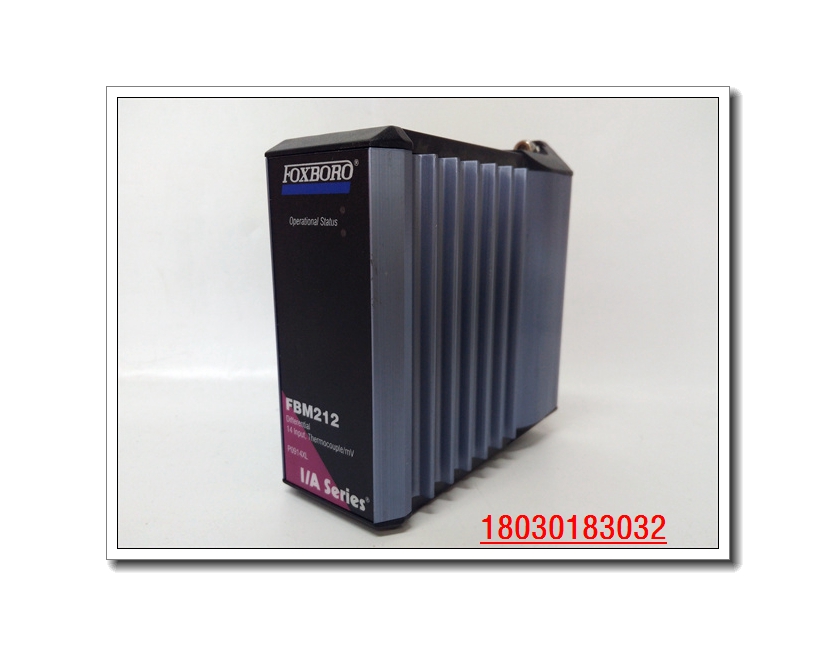

Foxboro FBM212 P0914XL 14通道热电偶输入接口组件是一款高性能的工业级热电偶输入模块，专为处理复杂工业环境中的温度测量而设计。以下是对该组件的详细解析：

一、产品概述

• 型号：FBM212 P0914XL
• 制造商：Foxboro（英维思集团旗下品牌）
• 类型：热电偶/mV输入模块
• 主要功能：提供14个差分隔离热电偶输入通道，以及一个差分隔离RTD基准结温度补偿通道（用于终端温度传感）。

二、技术规格与特点

1. 输入通道：
• 数量：14个差分隔离热电偶输入通道
• 兼容性：接受各种温度范围的标准热电偶
• 功能：每个通道提供热电偶烧毁检测（上量程）功能
2. RTD基准结补偿通道：
• 数量：1个
• 用途：用于终端温度传感，提供高精度的温度补偿
3. 信号转换：
• 执行从现场传感器到可选冗余现场总线的电气输入信号接口所需的信号转换。
• 提供转换时间和变化率限制的可配置选项。
4. 高精度：
• 通过每个通道的sigma-delta数据转换实现高精度。
• 集成多路复用Sigma-Delta转换器，每500毫秒提供新的模拟输入读数，并可配置积分周期以消除过程噪声和电源线频率干扰。
5. 坚固耐用：
• 设计坚固，适用于G3级（恶劣）环境下的外壳。
• 挤压铝外壳为电路提供物理保护，符合ISA标准S71.04，提供不同程度的环境保护。
6. 连接与安装：
• 终端组件（TAs）支持将现场布线本地或远程连接到FBM212。
• 模块安装在200系列底板上，最多可容纳四个或八个现场总线模块。
• 底板可安装在DIN导轨上或机架上，包括用于冗余现场总线的信号连接器、冗余独立直流电源和终端电缆。

三、应用与优势

• 应用领域：广泛适用于需要高精度温度测量的工业环境，如化工、石油、天然气、电力、钢铁等行业。
• 优势：
• 高精度：通过sigma-delta数据转换技术实现高精度测量。
• 可靠性：坚固耐用的设计确保在恶劣环境下稳定工作。
• 灵活性：提供可配置的转换时间和变化率限制选项，满足不同应用场景的需求。
• 冗余性：支持冗余现场总线连接，提高系统的可靠性和稳定性。

The Foxboro FBM212 P0914XL 14-channel thermocouple Input module is a high-performance, industrial-grade thermocouple input module designed to handle temperature measurements in complex industrial environments. Here is a detailed breakdown of the component:

I. Product overview

Model: FBM212 P0914XL

Manufacturer: Foxboro (Invensys Group)

Type: Thermocouple /mV input module

Main Features: 14 differential isolated thermocouple input channels, and one differential isolated RTD reference junction temperature compensation channel (for terminal temperature sensing).

Second, technical specifications and characteristics

Input channel:

Quantity: 14 differential isolated thermocouple input channels

Compatibility: Standard thermocouples in various temperature ranges are accepted

Function: Each channel provides thermocouple burn detection (upper range) function

RTD reference junction compensation channel:

Quantity: 1

Purpose: For terminal temperature sensing, to provide high precision temperature compensation

Signal conversion:

Perform the required signal conversion from the field sensor to the electrical input signal interface of the optional redundant fieldbus.

Provides configurable options for conversion time and rate of change limits.

High precision:

High precision is achieved through sigma-delta data conversion on each channel.

Integrated multiplexed Sigma-Delta converters provide new analog input readings every 500 milliseconds and can be configured for integration cycles to eliminate process noise and power line frequency interference.

Rugged and durable:

Rugged design for enclosures in G3 (harsh) environments.

The extruded aluminum housing provides physical protection for the circuit and complies with ISA standard S71.04, providing varying degrees of environmental protection.

Connection and installation:

The Terminal Component (TAs) supports local or remote connection of field cabling to the FBM212.

Modules are mounted on the 200 Series baseplate and can accommodate up to four or eight fieldbus modules.

The base plate can be mounted on a DIN rail or rack and includes signal connectors for redundant fieldbuses, redundant independent DC power supplies and terminal cables.

3. Application and advantages

Application: Widely used in industrial environments requiring high precision temperature measurement, such as chemical, oil, natural gas, electric power, steel and other industries.

Advantages:

High precision: High precision measurement through sigma-delta data conversion technology.

Reliability: Rugged design ensures stable operation in harsh environments.

Flexibility: Provides configurable conversion time and rate of change limiting options to meet the needs of different application scenarios.

Redundancy: Supports redundant fieldbus connections to improve system reliability and stability.
