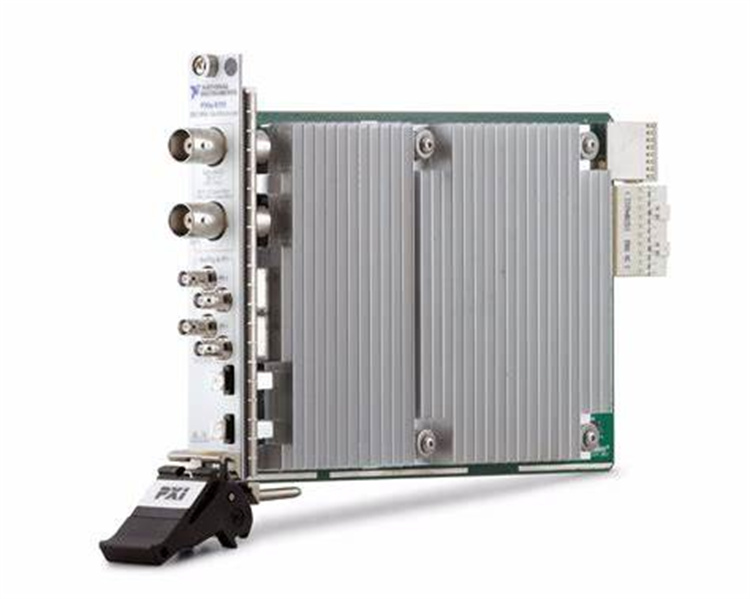

NI（National Instruments）美国PXI-5153输入输出模块是一款高性能的工业自动化模块，专为PXI（PCI extensions for Instrumentation）平台设计。以下是对该模块的详细介绍：

一、产品概述

• 品牌：美国NI（National Instruments）
• 型号：PXI-5153
• 类型：输入输出模块
• 平台：PXI平台

二、主要功能特点

1. 高速同步采样：PXI-5153具有八个同步采样通道，能够同时采集多个信号，提高数据采集的效率和准确性。这一特点使得它在需要高速数据采集和处理的工业自动化领域具有广泛的应用前景。
2. 高精度测量：该模块支持高精度测量，能够准确捕捉信号的微小变化，满足对测量精度要求较高的应用场景。
3. 灵活配置：PXI-5153支持多种输入范围和输入数据格式的配置，用户可以根据实际需求选择合适的配置，以适应不同的测试需求。
4. 强大的软件支持：NI提供了丰富的软件支持，包括LabVIEW等编程环境，用户可以通过这些软件对PXI-5153进行编程控制，实现自动化测试和数据处理。

三、技术规格

• 输入范围：电流输入支持020mA和420mA范围。
• 输入阻抗：电压输入和电流输入的阻抗均较高，以保证测量的准确性。
• 信道直流串扰：具有较低的信道直流串扰，确保各通道间信号的独立性。
• 变压器隔离：提供变压器隔离功能，增强模块的稳定性和安全性。

四、应用场景

PXI-5153输入输出模块广泛应用于工业自动化、半导体测试、航空航天、汽车制造等领域，特别是在需要高速、高精度数据采集和处理的测试系统中。

The NI (National Instruments) PXI-5153 Input/Output Module is a high-performance industrial automation module designed specifically for the PXI (PCI extensions for Instrumentation) platform. The following is a detailed introduction to the module:

1、 Product Overview

Brand: National Instruments (NI) from the United States

Model: PXI-5153

Type: Input/Output Module

Platform: PXI platform

2、 Main functional features

High speed synchronous sampling: PXI-5153 has eight synchronous sampling channels, which can simultaneously collect multiple signals, improving the efficiency and accuracy of data acquisition. This feature makes it widely applicable in industrial automation fields that require high-speed data acquisition and processing.

High precision measurement: This module supports high-precision measurement and can accurately capture small changes in signals, meeting the high requirements for measurement accuracy in application scenarios.

Flexible configuration: PXI-5153 supports configuration of multiple input ranges and input data formats. Users can choose the appropriate configuration according to their actual needs to adapt to different testing requirements.

Powerful software support: NI provides rich software support, including programming environments such as LabVIEW. Users can program and control PXI-5153 through these software to achieve automated testing and data processing.

3、 Technical specifications

Input range: Current input supports 020mA and 420mA ranges.

Input impedance: The impedance of both voltage input and current input is relatively high to ensure measurement accuracy.

Channel DC crosstalk: It has low channel DC crosstalk, ensuring the independence of signals between channels.

Transformer isolation: Provides transformer isolation function to enhance the stability and safety of the module.

4、 Application scenarios

The PXI-5153 input-output module is widely used in industrial automation, semiconductor testing, aerospace, automotive manufacturing, and other fields, especially in testing systems that require high-speed and high-precision data acquisition and processing.
