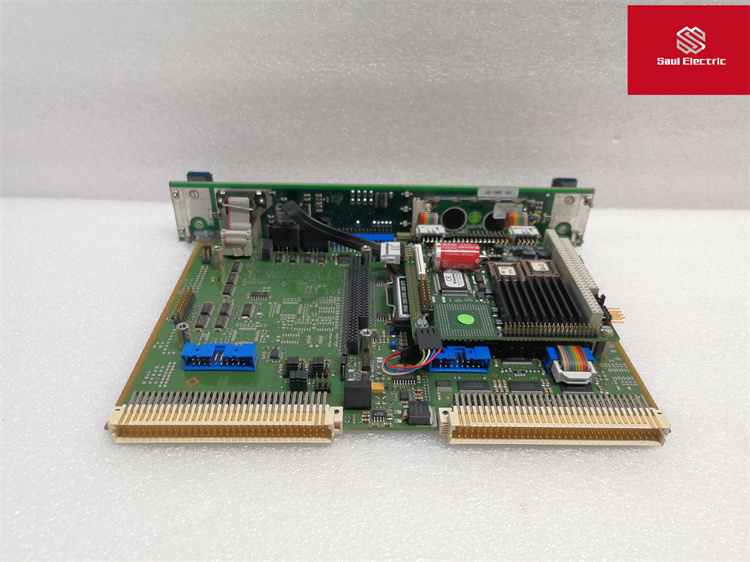

VIBRO-METER VM600 CPUM 200-595-067-114输入/输出模块/卡件是VIBRO-METER VM600振动监测系统的重要组成部分。

一、基本概述

品牌：VIBRO-METER

型号：VM600 CPUM 200-595-067-114

类型：输入/输出模块/卡件

二、结构与设计

CPUM/IOCN卡对：该模块通常与VM600系统机架（ABE04x）一起使用。CPUM卡既可单独使用，也可与相关IOCN卡一起作为卡对使用，具体取决于应用/系统要求。

插槽占用：CPUM是双宽卡，占用两个VM600机架插槽（卡位）；IOCN是单宽卡，占用一个VM600插槽。

安装位置：CPUM安装在机架前部（插槽0和1），相关的IOCN安装在机架后部CPUM正后方的插槽（插槽0）。

连接方式：每张卡通过两个连接器直接连接到机架背板。

三、功能特点

模块化、高通用性设计：所有VM600机架配置、显示和通信接口均可通过“联网”机架中的一张卡来完成。

机架控制器：CPUM卡作为“机架控制器”，可在机架和运行VM600 MPSx软件包（MPS1或MPS2）的计算机之间建立以太网链接。

高度集成：具有紧凑的设计，可以方便地集成到现有的系统中。

高可靠性：这些模块经过严格的质量控制和测试，以确保其在各种环境条件下都能稳定运行。

易于使用：具有简单的接口和易于使用的特性，可以方便地与各种设备进行连接和配置。

灵活的配置：可以根据特定的应用需求进行灵活的配置，以满足不同的控制和监测要求。

四、技术规格

通道数：16个动态通道和4个转速通道。

处理输出：每个动态通道和每个双通道最多20个处理输出（每个xmc 16 12个）。

采样方式：利用异步（固定频率）或同步（顺序跟踪）采样在所有通道上同时采集数据。

数据采集与处理：24位数据采集，高信噪比数据处理，高分辨率FFT高达每500ms 6400行。

五、应用与场景

VIBRO-METER VM600 CPUM 200-595-067-114输入/输出模块/卡件主要用于振动监测系统中，用于采集振动信号、进行数据处理和提供用户接口。它适用于各种机械设备的振动监测和分析，以及工业自动化和控制应用中的振动保护。

The input/output module/card of VIBRO-METER VM600 CPUM 200-595-067-114 is an important component of the VIBRO-METER VM600 vibration monitoring system.

1、 Basic Overview

Brand: VIBRO-METER

model: VM600 CPUM 200-595-067-114

Type: Input/Output Module/Card

2、 Structure and Design

CPUM/IOCN card pair: This module is typically used with VM600 system racks (ABE04x). The CPUM card can be used alone or as a card pair with related IOCN cards, depending on the application/system requirements.

Slot occupancy: CPUM is a dual wide card that occupies two VM600 rack slots (card slots); IOCN is a single wide card that occupies one VM600 slot.

Installation position: The CPUM is installed at the front of the rack (slots 0 and 1), and the related IOCN is installed at the slot directly behind the CPUM at the back of the rack (slot 0).

Connection method: Each card is directly connected to the rack backplane through two connectors.

3、 Functional Features

Modular and high usability design: All VM600 rack configurations, displays, and communication interfaces can be completed through a single card in the "networked" rack.

Rack Controller: The CPUM card serves as the "rack controller" and can establish an Ethernet link between the rack and the computer running the VM600 MPSx software package (MPS1 or MPS2).

Highly integrated: With a compact design, it can be easily integrated into existing systems.

High reliability: These modules undergo strict quality control and testing to ensure stable operation under various environmental conditions.

Easy to use: With a simple interface and user-friendly features, it can be easily connected and configured with various devices.

Flexible configuration: It can be flexibly configured according to specific application requirements to meet different control and monitoring requirements.

4、 Technical specifications

Number of channels: 16 dynamic channels and 4 speed channels.

Processing outputs: Each dynamic channel and each dual channel can have up to 20 processing outputs (16 12 per XMC).

Sampling method: Using asynchronous (fixed frequency) or synchronous (sequential tracking) sampling to simultaneously collect data on all channels.

Data acquisition and processing: 24 bit data acquisition, high signal-to-noise ratio data processing, high-resolution FFT up to 6400 lines per 500ms.

5、 Applications and Scenarios

The VIBRO-METER VM600 CPUM 200-595-067-114 input/output module/card is mainly used in vibration monitoring systems for collecting vibration signals, processing data, and providing user interfaces. It is suitable for vibration monitoring and analysis of various mechanical equipment, as well as vibration protection in industrial automation and control applications.
