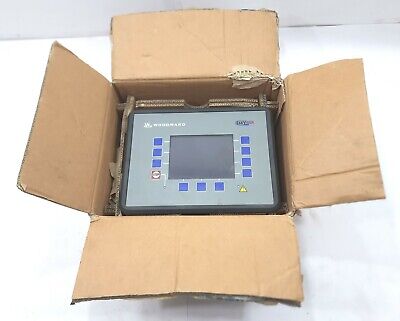

Woodward 8440-2050控制器模块

Woodward 8440-2050是一款由美国伍德沃德公司生产的控制器模块，它属于伍德沃德公司的产品系列中的一个数字调速控制器。这款控制器模块的设计非常灵活，主要应用于蒸汽轮机控制，但也能够控制公用涡轮发电机和涡轮膨胀机型号3。

功能特点

调速器：伍德沃德8440-2050控制器模块是一个自含独立油源、机械液压有差式调速器，适用于不需同步（等速）方式运行的小型蒸汽透平1。

数字控制模块：这些装置非常灵活，主要用于蒸汽轮机控制，但能够控制公用涡轮发电机和涡轮膨胀机型号。该单元被列为9907-170，是一个标准的伍德沃德505E基于微处理器的控制单元。

控制能力：9907-170配备了一个32位微处理器单元来处理控制能力，然后是一系列印刷电路板。

操作配置：该控制面板显示两行文本，每行24个字符，用于配置9907-170装置的操作规范。

兼容性：与大多数现有模拟负载共享速度控制系统兼容，现在具有软装载和卸载能力。针对公用事业总线提供恒定的负载水平运行。

应用场景

伍德沃德8440-2050控制器模块主要应用于需要精密控制和调节的小型蒸汽透平或其他类似的工业设备。它的设计使得它能够在不需要同步方式的情况下运行，这为一些特定的应用场景提供了便利

Woodward 8440-2050 Controller module

Woodward 8440-2050 is a controller module manufactured by Woodward Corporation of the United States, which belongs to the Woodward Company's product family of digital speed controllers. The design of this controller module is very flexible and is mainly used for steam turbine control, but can also control the utility turbine generator and turbine expansion model 3.

Functional characteristics

Governor: The Woodward 8440-2050 controller module is a self-contained independent oil source, mechanical hydraulic differential governor for small steam turbines1 that do not require synchronous (constant speed) operation.

Digital control modules: These units are very flexible and are primarily used for steam turbine control, but are capable of controlling common turbine generators and turbine expansion models. The unit is listed as 9907-170 and is a standard Woodward 505E microprocessor-based control unit.

Control capabilities: The 9707-170 is equipped with a 32-bit microprocessor unit to handle control capabilities, followed by a series of printed circuit boards.

Operation Configuration: The control panel displays two lines of text, each of 24 characters, for configuring the operation specifications of the 907-170 device.

Compatibility: Compatible with most existing analog load sharing speed control systems, it now has soft load and unload capabilities. Provides constant load level operation for utility buses.

Application scenario

The Woodward 8440-2050 controller module is mainly used in small steam turbines or other similar industrial equipment requiring precise control and regulation. It is designed so that it can run without the need for synchronization, which provides convenience for some specific application scenarios
